Boost Efficiency with TagTrack.
The next-gen 3D RTLS for
Manufacturing & Robotics.
Break free from flat 2D asset tracking. TagTrack uses UWB-powered 3D positioning to deliver real-time precision for manufacturing, robots, AGVs, drones, and more.
With integrated hardware and software, it's your all-in-one solution to boost productivity, reduce costs, and enhance safety — no matter the scale.
What is TagTrack?
In essence it is a Real-Time Location System (RTLS)
TagTrack is a cutting‑edge Ultra‑Wideband (UWB) Real‑Time Location System that delivers centimeter‑level accuracy and sub‑second update rates. It combines purpose‑built hardware and software to pinpoint assets, personnel, and vehicles anywhere on your site.
- Tags: Compact UWB transmitters affixed to items or people, broadcasting identification data.
- Anchors: Fixed UWB receivers strategically deployed to capture tag signals and enable precise triangulation.
- Localization Server: A ruggedized box PC that aggregates UWB data, runs the positioning engine, and streams live coordinates.
- Application Server: Deployed on the client LAN (often co‑hosted with the Localization Server), it powers dashboards, analytics, administration tools, and custom integrations.
Diagram Components:

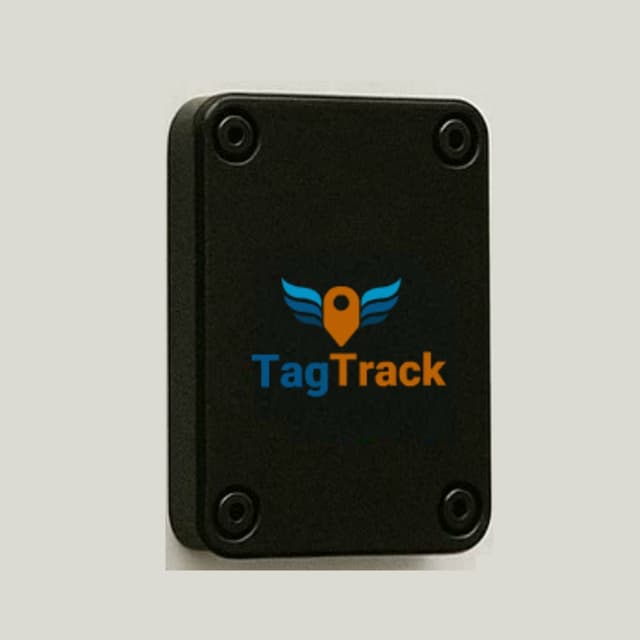

Tag
Ultra‑low‑power (ULP) & UWB device that run for years on a single battery or draw continuous power when vehicle‑mounted, broadcasting AES‑encrypted packets containing their unique ID, battery level, and sensor‑enhancement data. When tethered to external power, each tag fuses accelerometer, gyroscope, compass readings, and barometric data to deliver even higher positioning accuracy.
Anchor
Power‑over‑Ethernet (PoE) UWB receivers arrayed around the perimeter of the tracking zone to enable precise 3D localization. Each anchor decrypts incoming AES‑encrypted tag packets, computes triangulation data, and forwards both raw tag messages and positioning metrics to the Localization Server. Fully network‑manageable, anchors can be remotely configured and receive firmware updates directly from the server.
PoE Switch
Industrial‑grade Power‑over‑Ethernet switches that supply both DC power and gigabit data links to all Anchors, aggregating UWB traffic directly to the Localization Server. This PoE infrastructure delivers a reliable, centralized solution—yet if a site prefers, Anchors can instead run on external power and relay their data via Wi‑Fi, making PoE hardware optional.
Localization Server
Written in Rust for unparalleled speed and reliability, it ingests tag data and triangulation streams from Anchors and computes real‑time, centimeter‑level positions. Operating in both 2D and 3D modes, it leverages multiple built‑in filters to optimize accuracy. Processed location data is streamed seamlessly to the Application Server via a high‑throughput API, with comprehensive logging and health monitoring to ensure uninterrupted service.
Application Server
A flexible, LAN‑accessible platform—either co‑hosted with or separate from the Localization Server—that powers web dashboards, analytics, administration, and custom business logic. It consumes real‑time location feeds, stores historical data, and delivers interactive maps, reports, and alerts. With RESTful and WebSocket APIs, role‑based access control, audit logging, and a plugin architecture, it integrates seamlessly into enterprise workflows and scales with your needs.
WiFi Router
A versatile WLAN gateway—either supplied by the platform or provisioned on the client’s network—that provides secure, low‑latency Wi‑Fi access for all client devices to the Application Server. It supports multiple SSIDs, WPA3 encryption, and Quality of Service to prioritize real‑time location data. Fully manageable via the Application Server’s network console or standard management tools, it ensures seamless, reliable communication between user endpoints and the RTLS backend.
TagTrack in Action
TagTrack in Other Industries
Revolutionizing Safety in Climbing gyms
TagTrack has been uniquely customized to meet the safety challenges of the artificial climbing industry. By integrating specialized hardware with our advanced UWB technology, TagTrack offers climbing centers an unmatched level of safety monitoring and accident prevention:
- Lane Monitoring: A compact TagTrack sensor mounted directly on the auto-belay rope continuously tracks climber positions in real-time, immediately raising an alarm if the climber deviates from their designated climbing lane.
- Fall Detection: TagTrack's precise positional tracking instantly identifies uncontrolled descents, providing rapid alerts to staff, thus significantly reducing response times in emergency situations.
- Collision Prevention: When descending, TagTrack proactively warns of potential collisions by detecting if another person is standing directly beneath the climber's route, greatly enhancing safety for both climbers and spectators.
- Multiple Climber Management: TagTrack prevents climbing lane hazards by promptly detecting when a second climber begins ascending prematurely, alerting staff before an incident can occur.
- Safety Harness Verification: Critically, TagTrack alerts climbing supervisors if a climber begins ascent without properly clipping into their self-belay system—preventing potentially severe accidents through proactive intervention.
By leveraging TagTrack’s adaptable UWB solution, climbing facilities significantly enhance climber safety, operational oversight, and customer confidence.
Obstacle Courses & Family Entertainment Centers
In the active entertainment industry, TagTrack is transforming the visitor experience. Our UWB-based RTLS has been seamlessly integrated into wearable devices—like lightweight smartwatches—that guests wear during their visit to indoor adventure parks, obstacle courses, and family entertainment centers.
As children and adults move through the obstacle courses, TagTrack accurately tracks their location in real time, down to precise 3D movement. The system knows when a player begins a course, the exact sequence of obstacles they navigate, the direction they move, and how long it takes to complete each segment.
This data is then used to dynamically calculate performance scores based on route difficulty, speed, and efficiency. Results are displayed instantly through a connected mobile application that features live leaderboards, personal records, and friendly competition features—turning each visit into a gamified, memorable experience.
Parents particularly love the health insights: TagTrack estimates calorie burn and physical activity levels throughout the visit, giving families a fun way to stay active while also gaining valuable wellness insights.
Whether it’s powering friendly competition or enhancing safety and analytics, TagTrack elevates how families engage with entertainment environments.
Gamification through AI-powered Pose Recognition
TagTrack now combines precise Ultra-Wideband (UWB) tracking with cutting-edge AI-driven pose recognition from strategically placed IP cameras.
Our intelligent camera system instantly recognizes climbers' and players' movements, enhancing safety through early detection of risky behaviors or falls—triggering immediate staff alerts to prevent accidents.
Real-time pose analytics power dynamic scoring, interactive games, and live leaderboards, turning every climb or obstacle course into an exciting competition. Participants get instant feedback on their performance, fitness stats, and achievements.
Facility operators gain deeper insights into player engagement, popular challenges, and safety trends, allowing smarter decisions and better visitor experiences.
Elevate your system by asking us about our AI-powered pose recognition solution. TagTrack is the future not only for entertainment but also for safety and analytics.
TagTrack is now looking for early adopters & investors.
Experience the future of precision location tracking before anyone else—and help shape its evolution. We’re inviting a select group of visionary partners to collaborate with us on refining, deploying, and scaling TagTrack.
- First Access & Exclusive Pricing: Special early‑adopter rates and extended pilot terms.
- Custom Feature Development: Work directly with our engineering team on bespoke integrations and new analytics.
- Dedicated Support & Training: Priority onboarding, workshops, and a direct line to product experts.
- Equity & Investment Opportunities: Preferred terms in our upcoming funding round and insight into our growth strategy.
- Co‑Marketing & Thought Leadership: Joint case studies, press releases, and conference presentations.
Ready to transform your facility—and your portfolio? Contact us for a detailed partnership proposal or to schedule a private demo.
